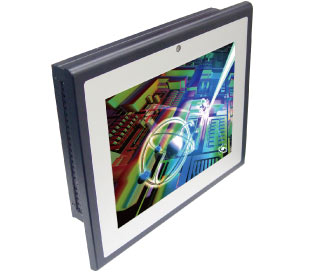

8.4 " Slim Fanless Panel PC |
Information Kiosk, POS, Mobile solution, Automation control |
View
|
|
Feature |
Intel Atom / VIA solution, Fanless, Touch screen, Water Proof, Open-frame design |
Fanless Panel PC |
Case Dimension |
48 H x 225 W x 162 D mm |
Front Panel Dimension |
10 H x 254 W x 190 D mm |
Material |
Plastics front frame + Aluminum |
|
1.5Kgs |
|
2.5" HDD |
|
0 ~ 45 °C ( 2.5" HDD ) / 0 ~ 50 °C ( CF Card ) |
|
5 ~ 90% @ 39 °C, non-condensing |
|
System Information (Please refer to M/B specification) |
Main board |
3V900C |
|
Max Memory |
DDRII SODIMM 1GB |
on board DDRII SODIMM 1GB |
CPU |
Nano 1 GHz |
Intel Atom N270 1.6Ghz |
COM port |
2 |
USB |
2 |
LCD Panel |
AUO |
Resolution |
SVGA 800x600 |
Brightness ( cd/m2 ) |
450 |
Contrast Ratio |
600:1 |
Number of Colors |
262144 |
Touch Screen |
TTI 4 wires / Resistance type |
Mounting Spec. |
VESA 75 |
Panel frame water proof |
IP65 |
Webcam (Option) |
2.0Mega pixel - auto focus |
Accessory (Option) |
Wall Mount Kit / Stand |
|
Ordering Information |
Part Nr. |
Product Code |
Res. |
MB Type |
CPU on board |
Mem. Support |
USB |
Serial |
LAN GbE |
Storage Support |
Availabilities |
P84-BTD200 |
ST82253 |
800x600 |
2I385CW |
E3845 1.91GHz |
Integrated with 4GB |
4 |
4 |
2 |
mSATA / 2.5" HDD |
A. |
|
|
|
|
|
|
Optional Acc.:
- Wireless 802.11n, mini-card, with Antenna
- Wall Mount kit (for VESA, back side of system)
- Stand for Panel PC, by VESA
- High Brightness 1500 nits + Aluminum Frame (15"+3I525C only)
|
|
|
|
|
